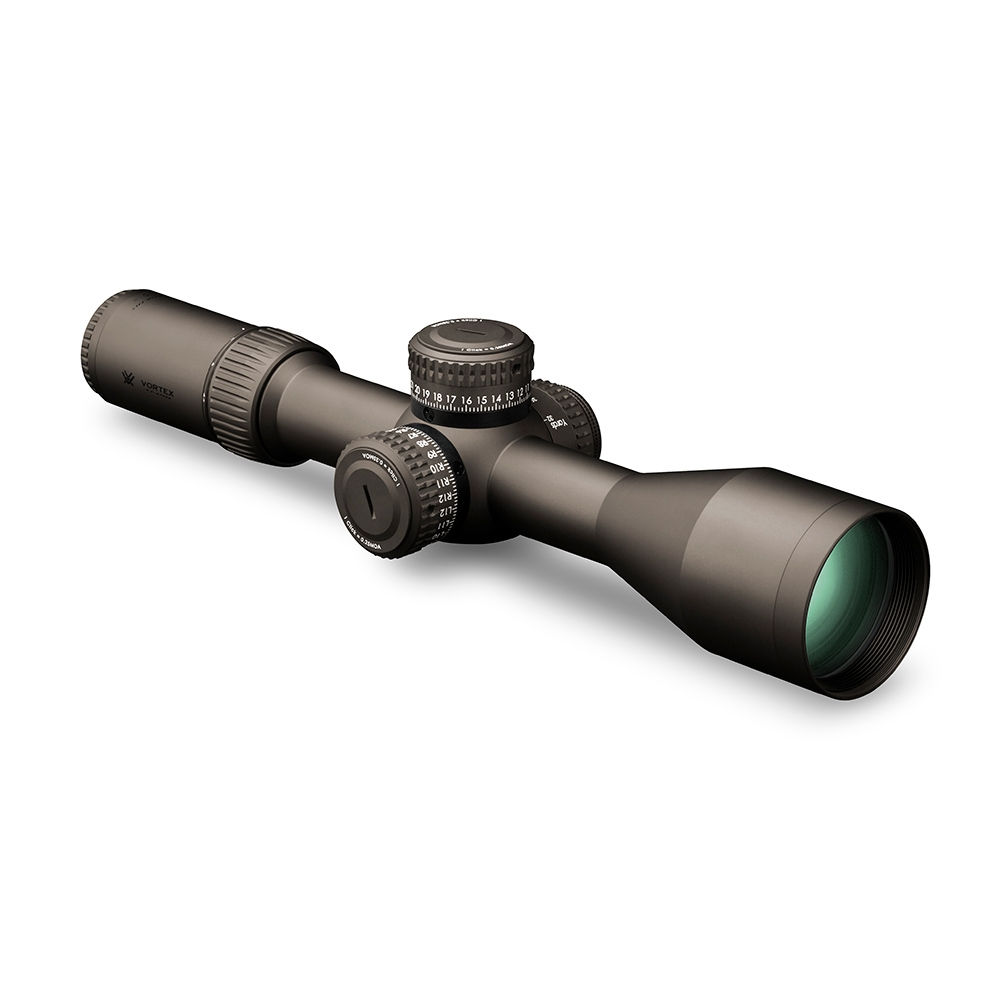

VORTEX RAZOR HD GEN II 4.5-27X56 FFP EBR-7C MOA
SPECIFICATIONS
Model: VT-RZR-42707 | Magnification: 4.5–27x | Objective Lens: 56mm | Eye Relief: 3.7"
Field of View: 25.3–4.4 ft/100 yards | Tube Size: 34mm | Length: 14.4" | Weight: 48.5 oz
Turret Style: L-Tec | Adjustment Graduation: 1/4 MOA | Travel per Rotation: 25 MOA
Max Elevation: 113.5 MOA total (71 MOA w/ zero stop) | Max Windage: 48 MOA total (34 MOA w/ zero stop)
Parallax Setting: 32 yards to infinity
OPTICAL SYSTEM
APO Apochromatic System - Index-matched lenses correct colour across entire visual spectrum
HD Lens Elements - Premium high-density extra-low dispersion glass delivers superior resolution
Optically Indexed Lenses - Edge-to-edge sharpness and brightness optimization
XRPlus Fully Multi-Coated - Premium proprietary coatings maximize light transmission
Plasma Tech - Advanced coating process for unparalleled durability
First Focal Plane Reticle - Proportional scaling maintains accurate holdover at all magnifications
Glass-Etched Illuminated Reticle - Protected between glass layers with 11 intensity levels
CONSTRUCTION
34mm Single-Piece Aircraft-Grade Aluminum Tube - Maximum strength and optical performance
Hard Anodized Finish - Low-glare matte surface with superior durability
ArmorTek Lens Coating - Ultra-hard scratch-resistant exterior lens protection
Waterproof - O-ring sealed against moisture, dust, and debris
Fogproof - Argon gas purged
Shockproof - Withstands recoil and impact
TURRET SYSTEM
L-Tec Integrated Locking Turrets - Prevents accidental adjustments
L-Tec Zero Stop - Rugged steel components prevent dialing below sight-in range
External Rotation Indicator - Quick visual and tactile turret position reference
Maximized Zero Adjustment Range - Expanded adjustment when zero stop disengaged
Micro Adjust Zero Setting - Infinite positioning between clicks for optimal accuracy
Side Focus - Left-side parallax adjustment accessible from shooting position
INTERNAL MECHANISMS
Friction Reduction System - Heat-treated hardened steel-on-steel contact prevents galling
Precision Turret Screws - Silicon-brass alloy with dry-film lubricant, sub-2 micron tolerances
Aircraft-Grade Aluminum Erector Tube - Anti-galling properties with stainless steel offset coil spring
Fast Focus Eyepiece - Quick reticle focusing
Locking Side Illumination - 11 intensity levels with off positions between settings
Includes L-Tec adjustment tool
